Control with Gestures

PreviousMIDI Foot PedalsNextControl with Face

Last updated 14 days ago

SongBook+ can recognize swipe gestures with 2 or 3 fingers upwards, downwards, left, and right, as well as tapping with 2 or 3 fingers in the top left, top right, bottom left, or bottom right.

Up to version 6.3, the settings for gesture control can be found directly on the first level of the settings.

From version 6.4 onwards, they can be found in a new group "Remote Control," together with the new settings for control with facial expressions.

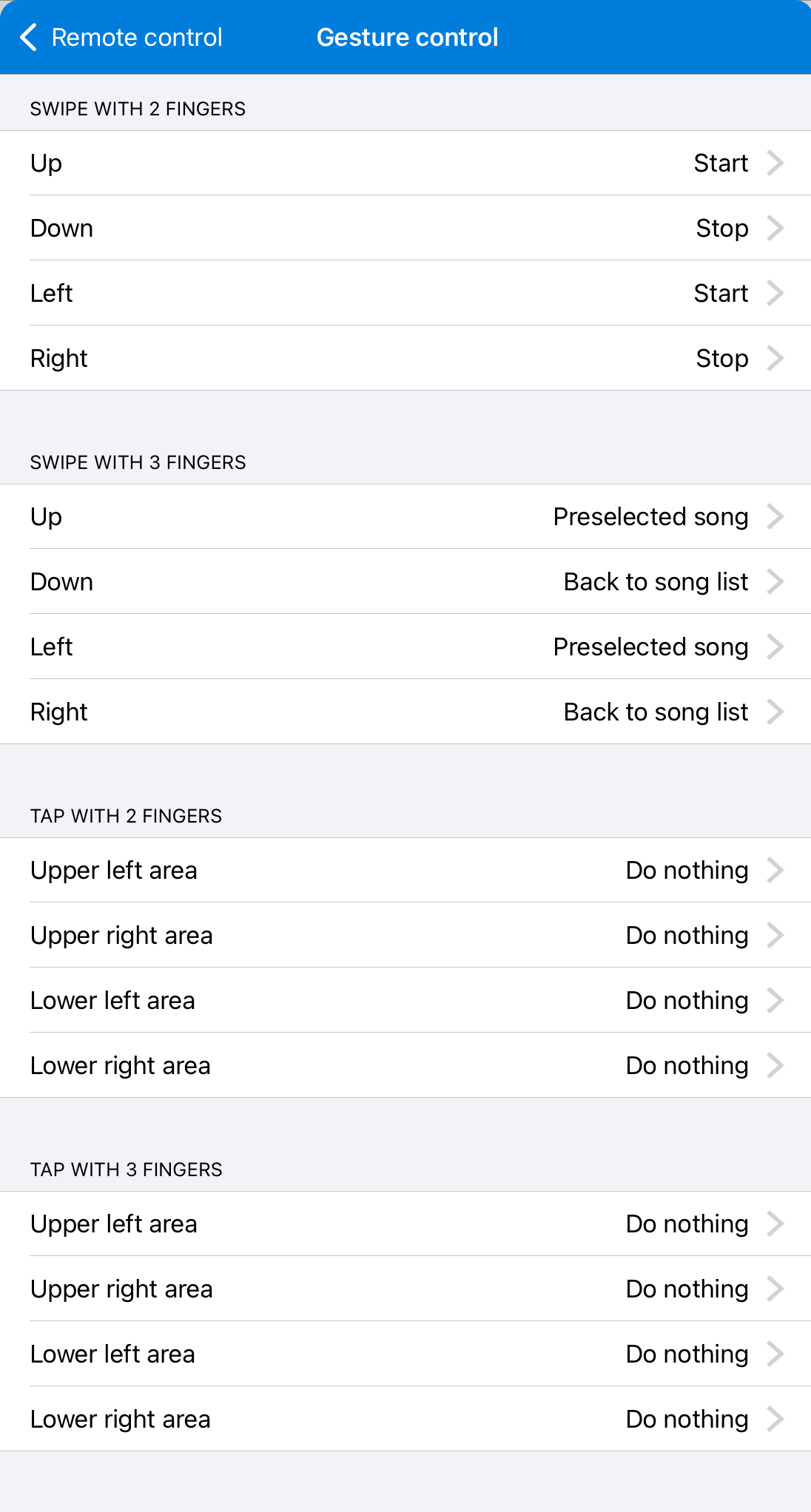

In the gesture control settings, you can assign the following actions, among others, to these gestures:

  • Do nothing

  • One page forward/backward

  • Press the start/stop/pause/continue button

  • Jump to the next song

  • Return to the song list

  • Open preselection list

  • Start/pause/continue scrolling

  • Scroll faster/slower

  • A whole/half/third/quarter page forward or backward

  • Enable/disable/toggle automatic playback

  • Start/stop the metronome

  • Play jingles

  • Turn loops on/off

  • Trigger all function buttons on the current page

  • Trigger specific function buttons on the current page

  • Trigger function buttons one after the other on the current page

  • Adjust device volume (louder, quieter)

  • Activate the search field and place the cursor in the field

  • Trigger MIDI macros

  • ...
